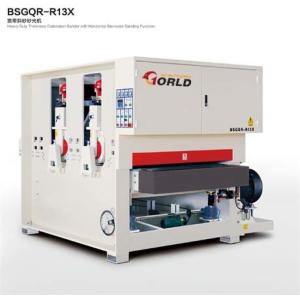

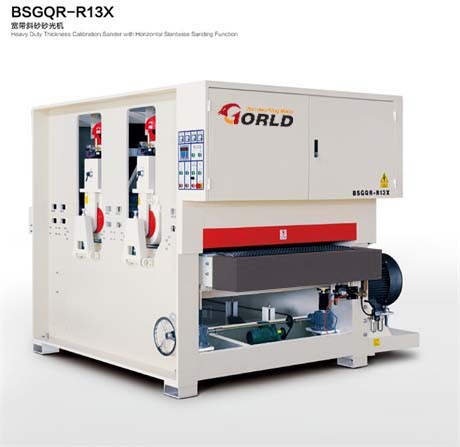

Two-Head Heavy Duty Calibrating Sander, BSGQR-R13X

Qingdao GORLD Woodworking Machinery Manufacturing Co., Ltd.
    Buy cheap Two-Head Heavy Duty Calibrating Sander, BSGQR-R13X from wholesalers

    Buy cheap Two-Head Heavy Duty Calibrating Sander, BSGQR-R13X from wholesalers
    • Buy cheap Two-Head Heavy Duty Calibrating Sander, BSGQR-R13X from wholesalers

    Two-Head Heavy Duty Calibrating Sander, BSGQR-R13X

    Ask Lasest Price
    Certification : CE
    Model Number : BSGQR-R13X
    Price : Request A Quote
    Delivery Time : 21 days
    Payment Terms : T/T; L/C
    Supply Ability : 20 sets per month
    Brand Name : GORLD MACH
    • Product Details
    • Company Profile

    Two-Head Heavy Duty Calibrating Sander, BSGQR-R13X

    Applications:

    This powerful heavy duty core sander is applicable mainly for calibrating core of plywood, multilayer board, blockboard, etc. This machine has big motor power and big steel contact roller. It is very easy to remove large volume of material to make the panel flat enough but not smooth enough. So it is ONLY used for rough sanding with rough sandpaper. (40/60/80/120 grit sanding paper can be used in this sander.


    Advantages:

    • The main frame of the sanding machine is welded into integral-box structure, which ensures high rigidity and operational stability. This also guarantees the long service life of the core sander.
    • The position of sanding roller is installed angularly, i.e., there is a horizontal angle between the contact roller and the plywood feeding direction. This special structure greatly improves the evenness of the work piece. It is easy to solve the overlap problem and the uneven problem of plywood. Besides, it can save about 20% power.
    • The steel contact roller provides good thickness calibration performance. And its large diameter allows the sand belt to be used for longer time.
    • The precise dynamic balance test of the contact roller, feeding rollers, pinch rollers and tension roller makes the sanding result more precise.
    • Our sanding machine adopts high-class brand frequency converter for its feeding system, thus ensuring high efficiency and stability of feeding.
    • Feeding system with feeding rollers and conveyor belt makes the feeding more stable and the sanding result more precise.
    • Strong and reliable sanding unit supplies you a stable sanding precision.
    • The feeding table can be adjusted up and down according to different sanding requirement.
    • Comprehensive control panel with advanced triggering computer terminal and all-sided real-time data display makes the operation easy and clear.
    • Core sander with electronic pneumatic abrasive belt oscillation system to control the abrasive belt move safely and stably around the contact roller.
    • Core sander with electronic pneumatic abrasive belt tension system to make the belt work within a safe tension.
    • Core sander with protection against the sanding belt running off.
    • Core sander with automatic brake device on the sanding unit.
    • Core sander with electronic pneumatic conveyer belt oscillation system to make the belt work within a safe tension.
    • Core sander with electronic pneumatic conveyer belt tension regulating system.
    • Core sander with full tools for adjustment and maintenance.
    • The main motor is at one side of the heavy duty sander, which is convenient for adjustment and maintenance.
    • Test sanding belt provided for free.
    • Core sanding machine equipped with a pressure gage that you can control the abrasive belt tension by the digital display of this independent device.

    Main parameters:

    Model

    BSGQR-R13X

    Working width

    40-1300 mm

    Working thickness

    3-110 mm

    Working length

    >850 mm

    Speed of feeding

    2-65 m/min

    Revolving speed of 1st abrasive belt

    20 m/s

    Revolving speed of 2nd abrasive belt

    20 m/s

    Size of 1st abrasive belt (W×C)

    1330×2615 mm

    Size of 2nd abrasive belt (W×C)

    1330×2615 mm

    Diameter of 1st contact roller

    Φ400 mm

    Diameter of 2nd contact roller

    Φ400 mm

    Hardness of 1st contact roller

    Grooved steel roller

    Hardness of 2nd contact roller

    Grooved steel roller

    Motor power of 1st sanding assembly

    75 kW

    Motor power of 2nd sanding assembly

    55 kW

    Motor power of feeding

    11 kW

    Motor power of height adjustment

    0.75 kW

    Motor power of brush roller

    0.75 kW

    Total motor power

    112.5 kW

    Power supply requirement

    380V/ AC, 50Hz, 3Ph (it can be changed)

    Compressed air pressure

    0.55 MPa

    Compressed air consumption

    0.20 m³/min

    Dust extraction requirement

    23000 m³/h

    Min. sucked air velocity

    25-30 m/s

    Machine weight

    10000 Kg

    Machine size (L×W×H)

    3333×3050×2460 mm


    GORLD GROUP is a woodworking machinery, metal finishing machinery, plastic machinery, plywood, MDF board, particle board, furniture, far infrared sauna room manufacturer and supplier. Our factories are located in China. We manufacture and market a wide variety of wide belt sanders, curved surface brush sanding machine, planer sander, edge trimming saw/ DD saw, sliding table saw machine, panel saw, band saw, circular saw, multiple blade saw, woodworking thicknesser, double-side planer, 4-sides moulder, cold press machine, hot press machine, drilling machine, CNC carving machine, edge banding machine, knife grinding machine, finger-joint machine, and dust collector, which are extensively utilized in electronic, electrical equipment, furniture, wood processing, construction decoration and other industries.


    GORLD knows what you know and what you do not know.

    GORLD provides what you want and what you do not want to lose.

    If you give us one chance, we will give you many surprises.

    Other names: two heads core sander, two-head overlap sander, core plywood sander, core plywood sanding machine, sander for core plywood panel, thickness calibration sander for core plywood, one-side thickness calibrating wide belt sander, automatic calibrating machine, calibrating sander, one side belt sander, heavy duty belt sander, heavy duty sanding machine, industrial belt sander, MDF and particle board sanding machine, HDF sanding machine, particle board sander, particle board sanding machine, wood panel sanding machine, wooden panel sanding machine.
